FlashRunner 2.0, High-Speed In-System parallel programmer. |
Including easy to integrate parralel programming solution for
VPC 90 sereis, Mass Interconnect interfaces. |
|
|
Dear , Through this newsletter we like to inform you about our products and services. In this edition you can find more information on the Parallel programming solution from SMH technology. |
FlashRunner 2.0 Technology. |
|
|

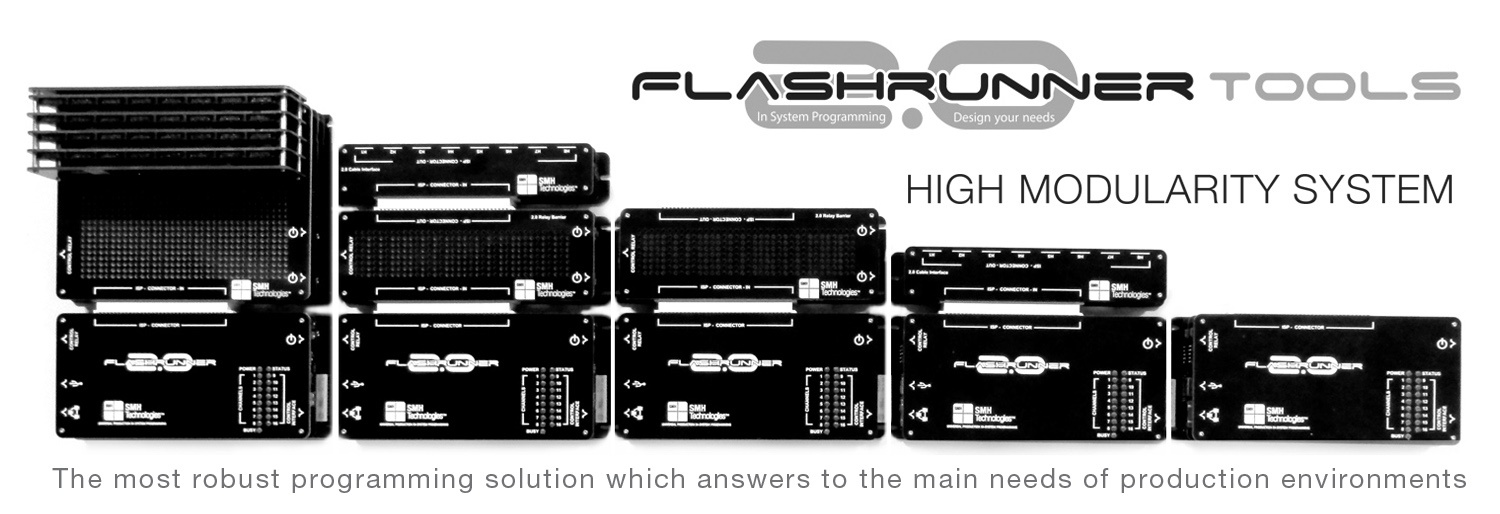

FlashRunner 2.0 is the most innovative In-System parallel programmer available. This programmer implements cutting-edge technology that features up to 16 independent parallel programming channels while targeting 8,16 and 32 bit based microcontrollers and serial memories.
With unique flexibility this new FlashRunner is specifically designed to program multi-PCB panels and highly structured boards with several programmable devices providing up to 16 independent channels. The user friendly new FR2.0 Workbench GUI allows the user to configure the system in a few clicks, minimizing time-to-production. |
FlashRunner 2.0 combines the most advanced technology based on SMH’s ten years’ experience in ISP programming. The introduction of FlashRunner 2.0 provides SMH 3 years technological competitive advantage in the market. Modern PCB production often requires faster performance. High performance manufacturing systems reduce production costs by lowering cycle times. To reduce costs while maintaining reliability, these manufactures produce circuit board assemblies in multi up panels. FlashRunner 2.0, uses cutting-edge
technology to address multi up panels and deliver the fastest and most reliable programmer in the market. |
| FlashRunner 2.0 is de meest innovatieve In‑System parallelle programmer in de markt. Deze programmer beschikt over geavanceerde technologie met tot 16 onafhankelijke parallelle programmeerkanalen en ondersteunt 8, 16 en 32‑bit microcontrollers en seriële geheugens.
Met zijn unieke flexibiliteit is deze nieuwe FlashRunner speciaal ontworpen voor het programmeren van panelen met meerdere PCBA's en sterk gestructureerde PCBA's met meerdere programmeerbare componenten, waarbij tot 16 onafhankelijke kanalen beschikbaar zijn.
De gebruiksvriendelijke nieuwe FR2.0 Workbench‑GUI stelt de gebruiker in staat het systeem met slechts een paar klikken te configureren, waardoor de "time to production" wordt geminimaliseerd. |
FlashRunner 2.0 combineert de meest geavanceerde technologie gebaseerd op SMH’s tien jarige ervaring in ISP‑programmeren.
De introductie van FlashRunner 2.0 geeft SMH een technologische voorsprong in de markt, van drie jaar. Moderne PCB‑productie vereist vaak hogere prestaties. Hoogwaardige productiesystemen verlagen de productiekosten door kortere cyclustijden.
Om kosten te verlagen en toch de betrouwbaarheid te waarborgen, produceren fabrikanten PCBA's in panelen met meerdere PCBA's. FlashRunner 2.0 gebruikt geavanceerde technologie om deze panelen te ondersteunen en levert de snelste en meest betrouwbare parallel programmer in de markt. |
|
|
-
Up to 5.000+ device support,
- New component updates are being added daily
- Supports most ISP protocols; (BDM, JTAG, SPI, I2C, MON, ICC, SCI, UART, and many others)
- Up to 16 parallel and independent programming channels
- Compact design for easy ATE integration
- Programming voltage / current measure and trimming for each channel
-
Up to 30 Mhz communication frequency
- Ethernet LAN / USB host interface, opto-isolated
- Standalone mode via control interface connector
- Relay barrier control interface
|
| - Ondersteuning voor meer dan 5.000+ componenten, met dagelijks nieuwe updates
- Ondersteunt de meeste ISP‑protocollen; (BDM, JTAG, SPI, I²C, MON, ICC, SCI, UART en vele andere)
- Tot 16 parallelle en onafhankelijke programmeerkanalen
- Compact ontwerp voor eenvoudige integratie in ATE‑systemen
- Programmeerspanning / stroommeting en afstelling per kanaal
- Communicatiefrequentie tot 30 MHz
- Ethernet LAN / USB‑hostinterface, optisch geïsoleerd
- Stand‑alone modus via control- interfaceconnector
- Relais barrière controle interface I/O.
|
|
|
YAV90FR2 FlashRunner 2.0, integrated. |
-
8-sites universal flash programmer
- SMH FlashRunner 2.0
- True parallel and independent
- Relay barrier integrated
- Easy and fast integration into your testsystem with VPC Interface technology.
- No extra wiring between programmer and interafce.
-
RCV module (Virginia Panel, VPC QP 192 pin receiver module, 510150152)
- CAN Bus or Ethernet control
- 6TL Phi6 environment compatible
|
The YAV90FR2 or YAM90FR2 is a flash programmer which can program up to max 8-sites in parralel, housed in a compact 6TL YAV Module form-factor, designed for seamless integration into automated test environments using the VPC, 90 series, Mass Interconnect Systems.
It incorporates the advanced FlashRunner 2.0 technology by SMH, enabling efficient programming of microcontrollers, flash memory, and other logic or memory devices.
The module features a relay barrier protecting the programmer, flexible connectivity options, with all digital I/O (DIO), programmable voltage lines, and corresponding ground lines switchable via integrated relays. |
